Patient-Specific Cortical Surface Surgical Planning Model

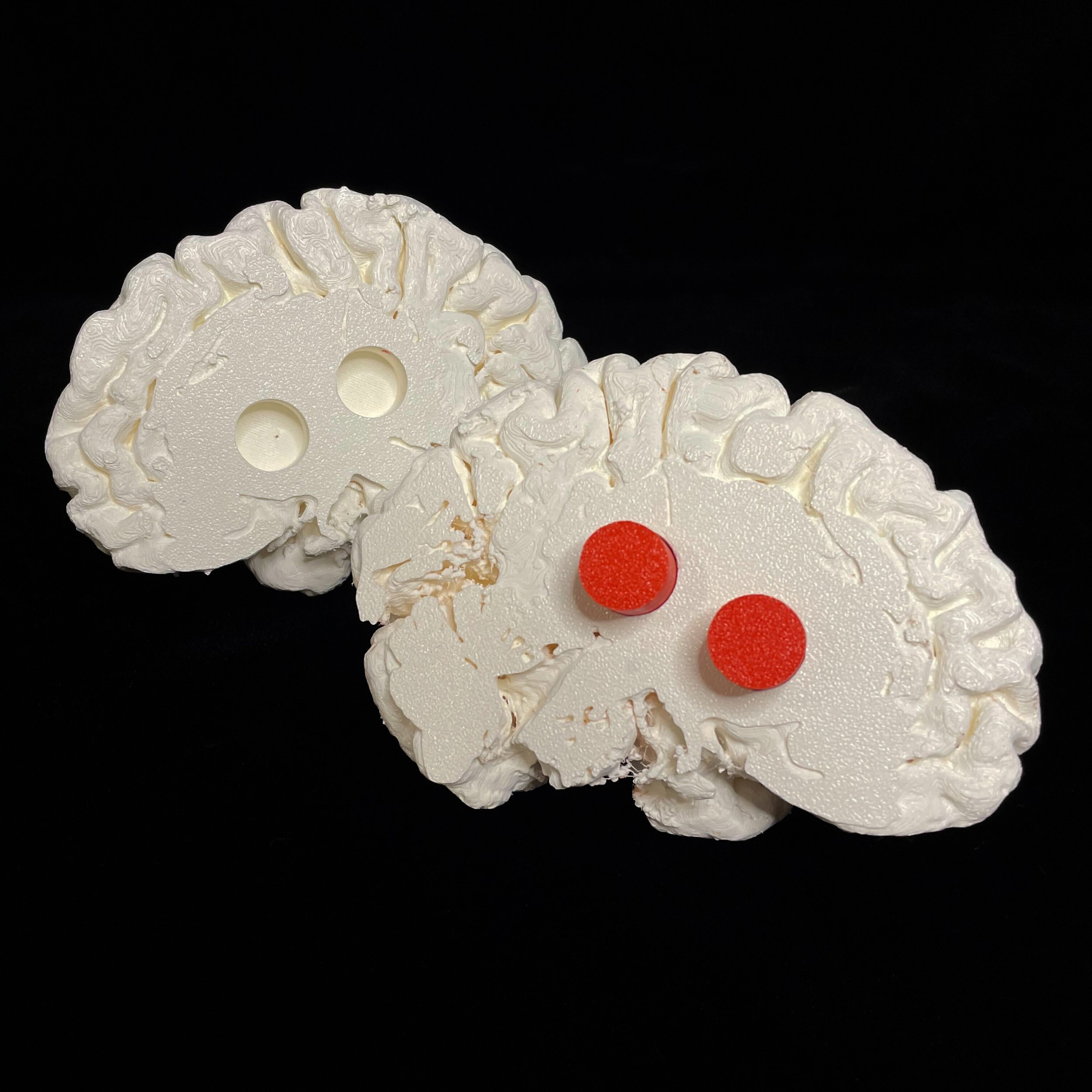

This is a 1:1 patient matched model of the cortical surface of the human brain. This model was used to assist with pre-procedural planning of the insertion of electrodes to allow for a brain-computer interface as a part of a clinical trial in stroke patients. The model was printed as a single material with PVA supports in two pieces split down the hemispheres. The two hemispheres are joined with 2 large 3D printed pegs.

Specs —

Printed with Ultimaker S5 in white PLA with PVA supports

Links —

Mind Over Matter, https://thehealthnexus.org/mind-over-matter/
